We safeguard the Safety & wellbeing in the maritime sector. Maritime conditions are always challenging that's why we work with reliable products and with partners we trust.
ESCS knows by experience that different situations call for different solutions. That's why all our systems are built on collaboration. We work intimately with our customers as well as our partners
from the projects conception to its delivery.
Stoneridge Orlaco
Stoneridge-Orlaco is the market leader in the field of camera and monitoring systems for commercial and industrial vehicles. This means we supply leading vehicle manufacturers around the world. Our systems increase safety, improve ergonomics, create greater comfort and provide for more efficiency. 'Vision is our Mission®'. That is why at Stoneridge-Orlaco, the development, manufacture and supply of camera and detection systems is high on the agenda. The way we see it, optimum visibility around all machinery, vehicles and vessels is a must. More than 30 years we have been designing, developing and producing professional and certified vision solutions for every situation. Our cameras and detection systems are used on construction machinery, trucks, buses, cranes, forklift trucks, maritime applications, offshore/onshore applications, emergency vehicles, railway applications, municipal vehicles and airport vehicles.Orlaco Famos Camera

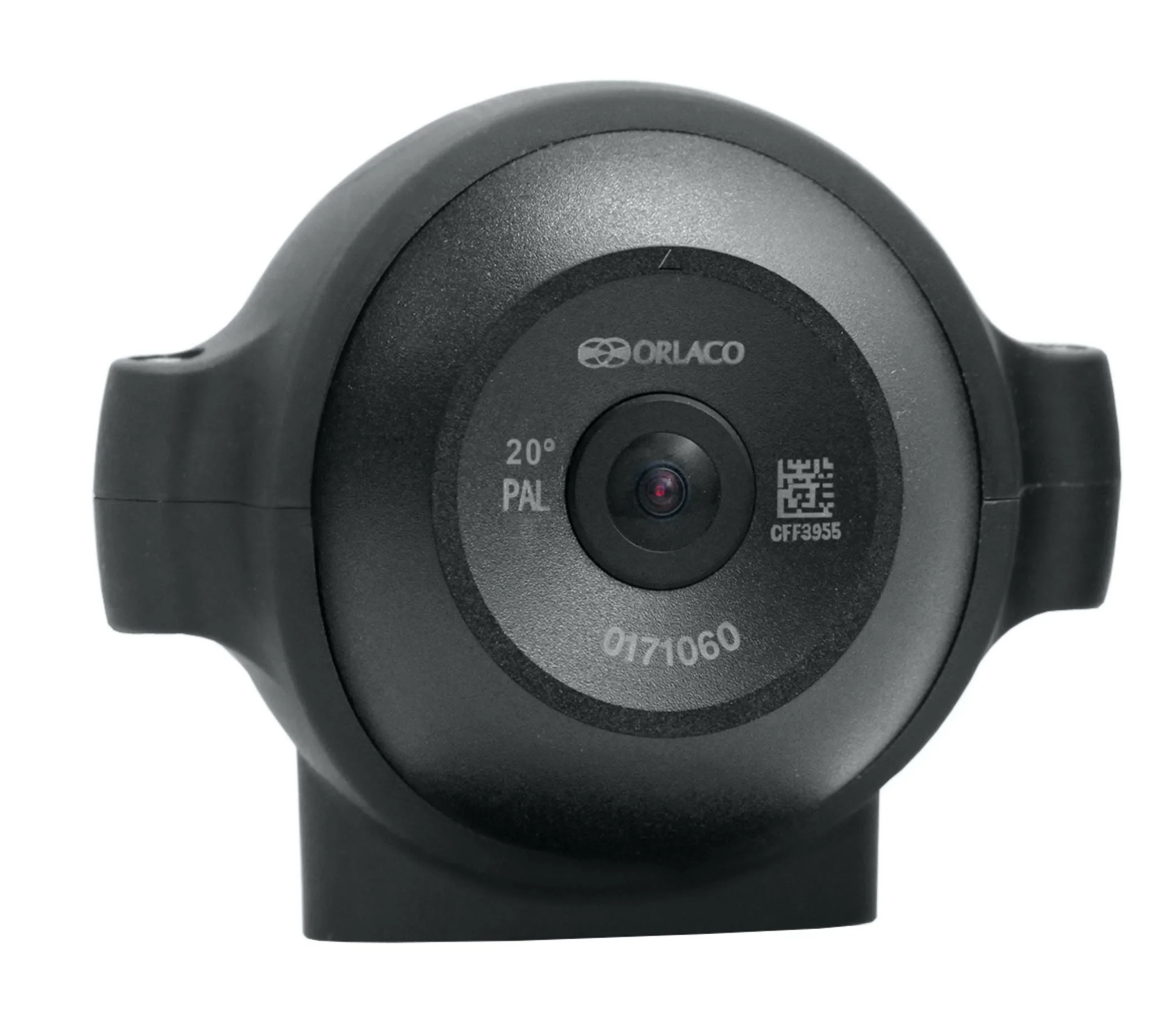

The Orlaco FAMOS camera is an extremely robust, compact industrial camera suitable for virtually any visual solution on machinery, vehicles, and vessels. The camera is shock- and vibration-resistant, 100 percent waterproof, equipped with heated lens glass, and delivers the best possible image in all weather conditions. Additionally, the integrated safety ticker detects 'frozen' images, ensuring that you can be confident in the camera's proper functioning.
Robust quality
The FAMOS comes with a range of lens angles, making the camera adaptable to any situation. Encased in an industrial housing, it's built to withstand the harshest conditions, including exposure to salt, sand, water, and scratches, ensuring functionality even in extreme weather. Furthermore, seamless integration with third-party monitoring systems is possible. Developed and tested to stringent quality standards, the FAMOS meets the highest EMC standard and holds ISO/TS 16949 certification.
Robust quality
The FAMOS comes with a range of lens angles, making the camera adaptable to any situation. Encased in an industrial housing, it's built to withstand the harshest conditions, including exposure to salt, sand, water, and scratches, ensuring functionality even in extreme weather. Furthermore, seamless integration with third-party monitoring systems is possible. Developed and tested to stringent quality standards, the FAMOS meets the highest EMC standard and holds ISO/TS 16949 certification.
The FAMOS camera is available with different viewing angles and comes in both PAL and NTSC video formats. Additionally, a mirror image option (MIRROR) is available.
FactSheet
- Available in multiple opening angles (20/40/60/80/102/118/129⁰)
- IP67 according to IEC 60529 / IP69k according to DIN 40050-9
- Temperature range -40⁰ up to +85⁰ C
- Shock and vibration resistant (50G)
Features Camera

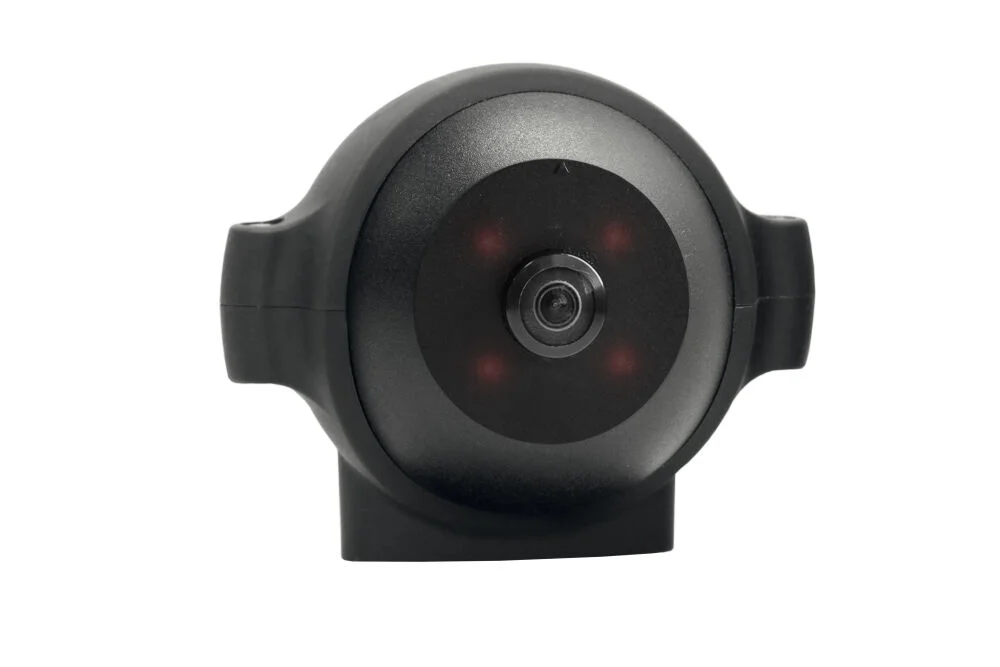

Orlaco Famos Camera IR led
The Orlaco FAMOS camera is an extremely robust, compact industrial camera suitable for virtually any visual solution on machinery, vehicles, and vessels. The camera is shock- and vibration-resistant, 100 percent waterproof, equipped with heated lens glass, and delivers the best possible image in all weather conditions. Additionally, the integrated safety ticker detects 'frozen' images, ensuring that you can be confident in the camera's proper functioning.
Robust quality
The FAMOS comes with a range of lens angles, making the camera adaptable to any situation. Encased in an industrial housing, it's built to withstand the harshest conditions, including exposure to salt, sand, water, and scratches, ensuring functionality even in extreme weather. Furthermore, seamless integration with third-party monitoring systems is possible. Developed and tested to stringent quality standards, the FAMOS meets the highest EMC standard and holds ISO/TS 16949 certification.
Robust quality
The FAMOS comes with a range of lens angles, making the camera adaptable to any situation. Encased in an industrial housing, it's built to withstand the harshest conditions, including exposure to salt, sand, water, and scratches, ensuring functionality even in extreme weather. Furthermore, seamless integration with third-party monitoring systems is possible. Developed and tested to stringent quality standards, the FAMOS meets the highest EMC standard and holds ISO/TS 16949 certification.
The FAMOS camera is available with different viewing angles and comes in both PAL and NTSC video formats. Additionally, a mirror image option (MIRROR) is available.
- Available in multiple opening angles (80°/118⁰)
- IP67 according to IEC 60529 / IP69k according to DIN 40050-9
- Temperature range -40⁰ up to +85⁰ C
- Shock and vibration resistant (50G)
Features Camera
Camera AFZ PAL HW
30x optical zoom
The AF-Zoom camera HW offers an impressive total zoom capacity, comprising a 30x optical zoom and an additional 12x digital zoom. This camera is often used in the inland shipping market.
The AF-Zoom camera HW offers an impressive total zoom capacity, comprising a 30x optical zoom and an additional 12x digital zoom. This camera is often used in the inland shipping market.
The hardwired version facilitates seamless communication and control via hardwired inputs.
Features Camera
Articlenumbers: 0103513
Lens: 30x optical , 32x digital zoom
Housing: Stainless steel QS304, mounting parts and sun cover, anodised aluminium housing, suitable for mobile applications with shocks and vibrations. Corrosion proof housing according to IEC 60068-2-52 salt mist, cyclic.
Operating temperature: -40°C to + 85°C
Ingress protection:
IP68 according to IEC 60529, Dust tight and protected against the effects of immersion in water up to 10m for 30 minutes and IP69K according to DIN 40050-9, camera can withstand a high pressure cleaning with water: 14-16L/min 80°C and 100 Bars flow.
Power input: 18....30Vdc
Weight: 2.6 kg
Lens: 30x optical , 32x digital zoom
Housing: Stainless steel QS304, mounting parts and sun cover, anodised aluminium housing, suitable for mobile applications with shocks and vibrations. Corrosion proof housing according to IEC 60068-2-52 salt mist, cyclic.
Operating temperature: -40°C to + 85°C
Ingress protection:
IP68 according to IEC 60529, Dust tight and protected against the effects of immersion in water up to 10m for 30 minutes and IP69K according to DIN 40050-9, camera can withstand a high pressure cleaning with water: 14-16L/min 80°C and 100 Bars flow.
Power input: 18....30Vdc
Weight: 2.6 kg

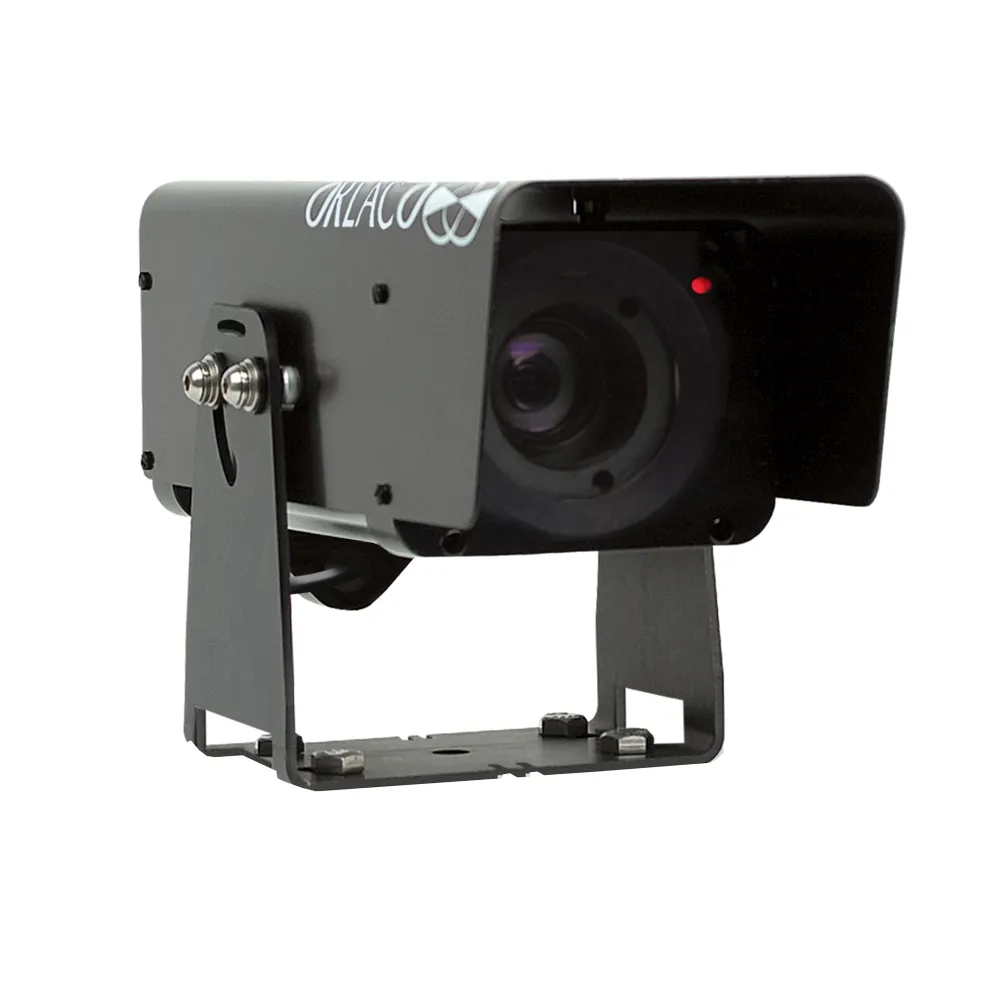

Camera AFZ PAL Serial
40x optical zoom
The AF-Zoom camera offers an impressive total zoom capacity of 480x, comprising a 40x optical zoom and an additional 12x digital zoom. It boasts compatibility with Orlaco Standard RS232 (Pelco-D/Visca) communication or RS485 (Pelco-D/Visca) communication protocols.
The AF-Zoom camera offers an impressive total zoom capacity of 480x, comprising a 40x optical zoom and an additional 12x digital zoom. It boasts compatibility with Orlaco Standard RS232 (Pelco-D/Visca) communication or RS485 (Pelco-D/Visca) communication protocols.
The RS232 version facilitates seamless communication and control, allowing users to manipulate zoom functions directly from a serial Orlaco monitor. However, beyond this direct connection option, the camera provides versatility, offering numerous avenues for integration with third-party systems and operations.
Variants of the AF-Zoom camera cater to different requirements and environments. These variants include serial PAL RS232, serial NTSC RS232, stainless steel (SS) PAL RS232, and PAL hard-wired configurations. Each variant is tailored to specific needs and applications, making them suitable for visual solutions in machinery, crane operations, and maritime settings.
Features Camera
Articlenumbers:
- 0103532 (RS232)
- 0113532 (RS485)
Lens: 30x optical , 32x digital zoom
Housing: Stainless steel QS304, mounting parts and sun cover, anodised aluminium housing, suitable for mobile applications with shocks and vibrations. Corrosion proof housing according to IEC 60068-2-52 salt mist, cyclic.
Operating temperature: -40°C to + 85°C
Ingress protection:
IP68 according to IEC 60529, Dust tight and protected against the effects of immersion in water up to 10m for 30 minutes and IP69K according to DIN 40050-9, camera can withstand a high pressure cleaning with water: 14-16L/min 80°C and 100 Bars flow.
Power input: 18....30Vdc
Weight: 2.6 kg
- 0103532 (RS232)
- 0113532 (RS485)
Lens: 30x optical , 32x digital zoom
Housing: Stainless steel QS304, mounting parts and sun cover, anodised aluminium housing, suitable for mobile applications with shocks and vibrations. Corrosion proof housing according to IEC 60068-2-52 salt mist, cyclic.
Operating temperature: -40°C to + 85°C
Ingress protection:
IP68 according to IEC 60529, Dust tight and protected against the effects of immersion in water up to 10m for 30 minutes and IP69K according to DIN 40050-9, camera can withstand a high pressure cleaning with water: 14-16L/min 80°C and 100 Bars flow.
Power input: 18....30Vdc
Weight: 2.6 kg
Camera AFZ Sst
40x optical zoom
The AF-Zoom camera offers an impressive total zoom capacity of 480x, comprising a 40x optical zoom and an additional 12x digital zoom. It boasts compatibility with Orlaco Standard RS232 (Pelco-D/Visca) communication or RS485 (Pelco-D/Visca) communication protocols.
The AF-Zoom camera offers an impressive total zoom capacity of 480x, comprising a 40x optical zoom and an additional 12x digital zoom. It boasts compatibility with Orlaco Standard RS232 (Pelco-D/Visca) communication or RS485 (Pelco-D/Visca) communication protocols.
The RS232 version facilitates seamless communication and control, allowing users to manipulate zoom functions directly from a serial Orlaco monitor. However, beyond this direct connection option, the camera provides versatility, offering numerous avenues for integration with third-party systems and operations.
Variants of the AF-Zoom camera cater to different requirements and environments. These variants include serial PAL RS232, serial NTSC RS232, stainless steel (SS) PAL RS232, and PAL hard-wired configurations. Each variant is tailored to specific needs and applications, making them suitable for visual solutions in machinery, crane operations, and maritime settings.
Features Camera
Articlenumbers:
- 0103482 (RS232)
- 0113482 (RS485)
Lens: 30x optical , 32x digital zoom
Housing: Housing, mounting parts and sun cover; stainless steel 316, suitable for mobile applications with shocks and vibrations. Corrosion proof housing according to IEC 60068-2-52 salt mist, cyclic.
Operating temperature: -40°C to + 85°C
Ingress protection:
IP68 according to IEC 60529, Dust tight and protected against the effects of immersion in water up to 10m for 30 minutes and IP69K according to DIN 40050-9, camera can withstand a high pressure cleaning with water: 14-16L/min 80°C and 100 Bars flow.
Power input: 18....30Vdc
Weight: 5.1 kg
- 0103482 (RS232)
- 0113482 (RS485)
Lens: 30x optical , 32x digital zoom
Housing: Housing, mounting parts and sun cover; stainless steel 316, suitable for mobile applications with shocks and vibrations. Corrosion proof housing according to IEC 60068-2-52 salt mist, cyclic.
Operating temperature: -40°C to + 85°C
Ingress protection:
IP68 according to IEC 60529, Dust tight and protected against the effects of immersion in water up to 10m for 30 minutes and IP69K according to DIN 40050-9, camera can withstand a high pressure cleaning with water: 14-16L/min 80°C and 100 Bars flow.
Power input: 18....30Vdc
Weight: 5.1 kg
TIC Camera (Thermal)
Orlaco TIC Camera
The Orlaco TIC camera is a robust thermal imaging camera (TIC) equipped with Uncooled LWIR Thermal Imager 336x256 VOx Microbolometer technology and a 9Hz frame rate. The camera is shock and vibration resistant, nitrogen-filled, 100% waterproof, equipped with a heated lens glass, and provides the best possible image quality under all weather conditions.
The Orlaco TIC camera is equipped with a Wide Field Of View (WFOV) 24º x 18º thermal imaging camera, offering comprehensive coverage for surveillance needs. It supports Orlaco Standard RS232 communication protocols (Pelco-D/Visca), enabling seamless integration with Orlaco monitors for zooming and communication functionalities.
The Orlaco TIC camera is equipped with a Wide Field Of View (WFOV) 24º x 18º thermal imaging camera, offering comprehensive coverage for surveillance needs. It supports Orlaco Standard RS232 communication protocols (Pelco-D/Visca), enabling seamless integration with Orlaco monitors for zooming and communication functionalities.
Beyond direct connectivity to Orlaco monitors, the camera offers versatile compatibility with various third-party systems, providing flexible control and connection options to suit diverse requirements.
Encased in a sturdy aluminum housing, the camera ensures durability and reliability in demanding environments, making it an ideal choice for a wide range of applications where thermal imaging capabilities are essential.
Features Camera
Sensor: Uncooled LWIR Thermal Imager 336 x 256 VOx Microbolometer
Lens: WFOV (Wide Field Of View), 19mm (f1.24) 24° x18°
Housing: Stainless steel QS304, mounting parts and sun cover, anodised aluminium housing, suitable for mobile applications with shocks and vibrations. Corrosion proof housing according to IEC 60068-2-52 salt mist, cyclic.
Operating temperature: -40°C to + 85°C
Ingress protection:
IP68 according to IEC 60529, Dust tight and protected against the effects of immersion in water up to 10m for 30 minutes and IP69K according to DIN 40050-9, camera can withstand a high pressure cleaning with water: 14-16L/min 80°C and 100 Bars flow.
Power input: 18....30Vdc
Weight: 2.6 kg
Lens: WFOV (Wide Field Of View), 19mm (f1.24) 24° x18°
Housing: Stainless steel QS304, mounting parts and sun cover, anodised aluminium housing, suitable for mobile applications with shocks and vibrations. Corrosion proof housing according to IEC 60068-2-52 salt mist, cyclic.
Operating temperature: -40°C to + 85°C
Ingress protection:
IP68 according to IEC 60529, Dust tight and protected against the effects of immersion in water up to 10m for 30 minutes and IP69K according to DIN 40050-9, camera can withstand a high pressure cleaning with water: 14-16L/min 80°C and 100 Bars flow.
Power input: 18....30Vdc
Weight: 2.6 kg
PTZ Camera Alu
The sturdy Orlaco PTZ camera aluminium PAL RS232 can be used in many serial vision solutions on machines, vehicles and vessels. The camera is shock and vibration proof, filled with nitrogen, 100% waterproof, has heated lens glass and provides the best possible image in all weather conditions. In addition, the camera has a 0 lux night vision mode and a built-in brightness function for improved view in dark situations.
The powerful camera, with an overall 480x zoom (40x optical and 12x digital) for Orlaco Standard RS232 (Pelco-D/Visca) communication. The camera has a 180 degree lifting angle and can rotate 180 degrees to the left and 180 degrees to the right (360 degrees) with a speed of 12.5 degrees per second.
Features Camera
Articlenumbers:
- 0506953 (RS232)
- 0516952 (RS485)
Lens: 30x optical , 32x digital zoom
Housing: Anodised aluminium housing corrosion proof according IEC 60068-2-52 salt mist, cyclic. 1,4 Bar overpressure filled with dry nitrogen, long term stability 0,1%/year.
Operating temperature: -40°C to + 85°C
Ingress protection:
IP68 according to IEC 60529, Dust tight and protected against the effects of immersion in water up to 10m for 30 minutes and IP69K according to DIN 40050-9, camera can withstand a high pressure cleaning with water: 14-16L/min 80°C and 100 Bars flow., 1,4 Bar overpressure filled with dry nitrogen, long term stability 0,1%/year.
Power input: 18....30Vdc
Weight: 6.8 kg
- 0506953 (RS232)
- 0516952 (RS485)
Lens: 30x optical , 32x digital zoom
Housing: Anodised aluminium housing corrosion proof according IEC 60068-2-52 salt mist, cyclic. 1,4 Bar overpressure filled with dry nitrogen, long term stability 0,1%/year.
Operating temperature: -40°C to + 85°C
Ingress protection:
IP68 according to IEC 60529, Dust tight and protected against the effects of immersion in water up to 10m for 30 minutes and IP69K according to DIN 40050-9, camera can withstand a high pressure cleaning with water: 14-16L/min 80°C and 100 Bars flow., 1,4 Bar overpressure filled with dry nitrogen, long term stability 0,1%/year.
Power input: 18....30Vdc
Weight: 6.8 kg

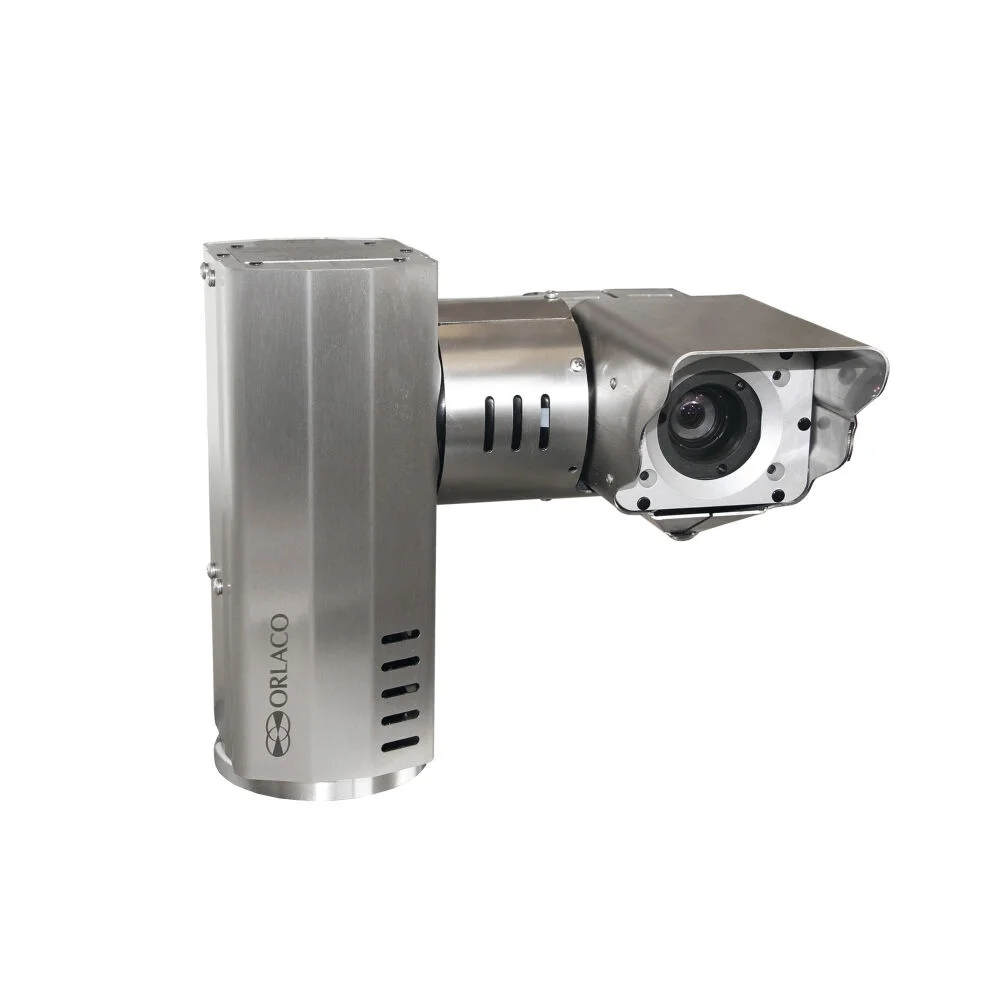

PTZ Camera SST316L
The sturdy Orlaco PTZ camera SST PAL RS232 can be used in many serial vision solutions on machines, vehicles and vessels. The camera is shock and vibration proof, filled with nitrogen, 100% waterproof, has heated lens glass and provides the best possible image in all weather conditions. In addition, the camera has a 0 lux night vision mode and a built-in brightness function for improved view in dark situations.
The powerful camera, with an overall 480x zoom (40x optical and 12x digital) for Orlaco Standard RS232 (Pelco-D/Visca) communication. The camera has a 180 degree lifting angle and can rotate 180 degrees to the left and 180 degrees to the right (360 degrees) with a speed of 12.5 degrees per second.
Features Camera
Articlenumbers:
- 0506912 (RS232)
- 0516912 (RS485)
Lens: 30x optical , 32x digital zoom
Housing: SST316
Operating temperature: -40°C to + 85°C
Ingress protection:
IP68 according to IEC 60529, Dust tight and protected against the effects of immersion in water up to 10m for 30 minutes and IP69K according to DIN 40050-9, camera can withstand a high pressure cleaning with water: 14-16L/min 80°C and 100 Bars flow., 1,4 Bar overpressure filled with dry nitrogen, long term stability 0,1%/year.
Power input: 18....30Vdc
Weight: 18.6 kg
- 0506912 (RS232)
- 0516912 (RS485)
Lens: 30x optical , 32x digital zoom
Housing: SST316
Operating temperature: -40°C to + 85°C
Ingress protection:
IP68 according to IEC 60529, Dust tight and protected against the effects of immersion in water up to 10m for 30 minutes and IP69K according to DIN 40050-9, camera can withstand a high pressure cleaning with water: 14-16L/min 80°C and 100 Bars flow., 1,4 Bar overpressure filled with dry nitrogen, long term stability 0,1%/year.
Power input: 18....30Vdc
Weight: 18.6 kg
